另外,我们也采用了SiSoftware Sandra——基于Windows系统的分析软件,对正睿I146738S服务器的处理器、内存、网络、磁盘等子系统进行测试。
我们首先利用最新版的SiSoftware Sandra lite 2011,测试正睿I146738S的算术性能、多媒体性能、多核效率和加密解密性能:
算术性能测试结果
其他测试结果如下:
SiSoftware Sandra Lite 2011 CPU测试 | 算术性能测试 (越高越好) |
至强E3-1230(3.2GHz、4核) | |
---|---|---|---|
Aggregate Arithmetic Performance | 101.48GOPS | ||
Dhrystone iSSE4.2 | 129.1GIPS | ||
Whetstone iSSE3 |
79.77GFLOPS | ||
多媒体性能测试(越高越好) | Aggregate Multi-Media Performance | 165.57MPixel/s | |
Multi-Media Int x8 iSSE4.1 | 190MPixel/s | ||
Multi-Media Float x4 iSSE2 | 144.26MPixel/s | ||
Multi-Media Double x2 iSSE2 | 77.9MPixel/s | ||
多核效率测试 | Inter-Core Bandwidth(越高越好) | 21.1GB/s | |
Inter-Core Latency(越低越好) | 46.4ns | ||
加密解密性能测试 | Cryptographic Bandwidth | 2.13GB/s | |
AES256-ECB iAES Cryptographic Bandwidth |
5.6GB/s | ||
SHA256 iSSE4 Hashing Bandwidth |
0.828GB/s |

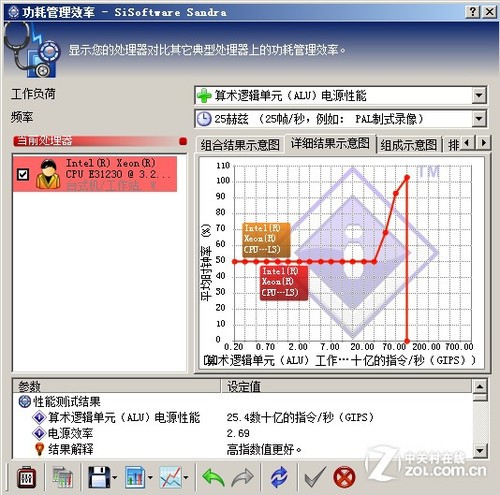

另外,我们也对处理器能耗管效率进行了测试。测试分算术逻辑单元(ALU)电源性能和浮点处理单元(FPU)电源性能两项,其他设置默认,测试结果如下:
SiSoftware Sandra 2011中还提供了处理器面向.NET操作的测试。.NET测试类似于处理器性能测试,包括算术性能测试和多媒体性能测试:
我们将.NET测试结果汇总如下表所示:
SiSoftware Sandra Lite 2011 .NET测试 | .NET算术性能测试 | Aggregate .NET Performance | 28.12GOPS |
---|---|---|---|
Dhrystone .NET | 16.29GIPS | ||
Whetstone .NET | 48.54GFLOPS | ||
.NET多媒体性能测试 | Aggregate .NET Multi-Media Performance | 30.22MPixel/s | |
Multi-Media Int x1 .NET | 35.66MPixel/s | ||
Multi-Media Float x1 .NET | 13MPixel/s | ||
Multi-Media Double x1 .NET | 25.6MPixel/s |
点评:
通过测试发现,至强E3-1230在算术、多媒体和加解密性能测试方面,表现突出。在.NET测试方面,优势也十分明显。然而相比之下,其多核效率测试略有不足,尤其是内联核延迟方面表现较差,耗时46.4ns。
